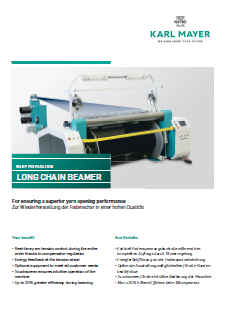

Long Chain Beamer (LCB)

Long Chain Beamer (LCB)

(Long chain beamer for converting ball to sheet for rope indigo dyeing)

KARL MAYER LCB is designed to provide superior yarn opening performance. The LCB is designed to be durable and dependable. The computer control system provides smooth and perfectly cylindrical yarn laps.
Manufactured by:  Karl Mayer, Germany

      Technical Details
  • Application range: rope indigo dyeing
  •   Key Features
  • DNC KAMCOS SYSTEM operator interface IPC/touch screen 12.1", ethernet interface for networking and connection for the relevant data acquisition and tele-service
  • Real-time yarn tension control during the entire process due to compensator regulation
  • Meter counting: measuring accurate ball length with automatic stopping for lease insertions
  • Reversing accumulator allows for infinite reversing to allow repair of broken end in the yarn sheet
  • Knot sensor: detects any knots and tangles formed in the rope
  • Braking device: guarantees a synchronized stopping of the equipment
  • Single-end winder (optional): to produce makeup packages
  • TUB turner (optional): allows the operator to reduce or eliminate twist in the rope
  • Presser roller device (optional): for perfect cylindrical beam with increased capacity
  • Robust beaming structure
  • Blowing device at expansion reed improves weaving efficiency
  • Yarn strummer (optional): a device that supports in the opening of the rope for increased efficiency
  • Operating speed: up to 500 m/min
  • Perfect warp tension control due to feeding device and programmable yarn sheet tension
  • About 20 to 25 percent more efficient than any other design ever produced for the denim market
