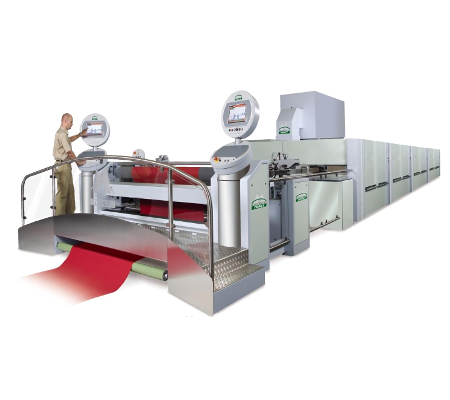

Montex 6500 c

Montex 6500 c

(Stenter frame with heat recovery system)

6500 model stenter machines are manufactured with German technology. These machines are characterised not only by high quality output but also for their energy saving drying and heat treatment processes. High level of automation, efficient thermal management, and little or no maintenance are the hallmark features of the 6500.
Manufactured by: M/s Monforts Fong's Textile Machinery Co. Ltd., PRC

      Technical Details
  • Machine speeds: 5-100 m/min (other speeds upon request )
  • Maximum chamber temperature: 220ºC
  • Minimum working width: 90 cm
  • Working width range available: 180 cm and 340 cm
  • Number of chambers available: 4-10
  • Stentering chains: Hercules horizontal with long-term lubrication
  •   Key Features
  • Hercules horizontal chain with long time lubrication
  • Pin and combi chain with maintenance free width adjustment spindle
  • All fabric transport drives are equipped with frequency-controlled 3-phase AC motors
  • Chambers with modular and space-saving design for optimum accessibility
  • Short controlled fabric guidance for optimum feeding
  • Separately controlled air flow for top and bottom air
  • TwinAir with inverters
  • Selvedge gumming unit with reservoir
  • Double layer lint filter Secuclean
  • Drawable nozzle for easy maintenance
  • German technology at Asian price
  • Modular and space saving design with optimum accessibility
  • Reduced energy input
  • Gentle heat treatment
  • No distortion of knitted goods
  • Reduced operation costs
  • Attractive cost/benefit ratio
