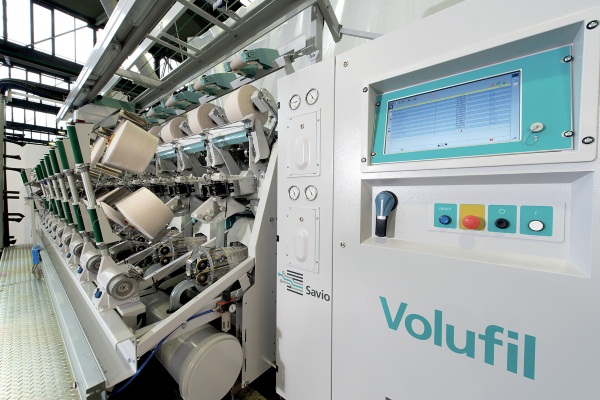

Volufil Multicone

Volufil Multicone

The consolidated success of the “Volufil technology” and the new demand for different yarns for diversified fabric applications, has led to several new developments in machine technology.

The new Volufil Multicone represents these developments as per the new market requirements.
As a matter of fact, Savio has extended the technological process on acrylic heat-set yarn, special yarn (chenille) and traditional HB Acrylic fibre, also blended with wool and elastomeric filaments.

The new drumless winding system “Multicone” allows the best solution for any yarn type and package format with different traverse take-up. The Multicone technology allows the tailoring of the package for different end uses (dyeing, knitting, etc.) with simple settings on the PC.
Manufactured by: Savio Macchine Tessili Group, Italy

  • FEATURES
  • BENEFITS
  • RESOURCES
  • GET A QUOTE
More
  • Number of winding heads: 25-30-35-40-45. With automatic doffing
  • Uses: bulking of acrylic yarn, HB and blends also with elastomers, wool, and blend-set yarn. Heat-setting
  • Workable counts: Nm 5-50 (referring to feeding yarn) Winding speed: 500-1000 m/min with continuous variation
  • Heat chamber temperature: up to 165°C with continuous variation. Steam, electric or both heating
  • Heat chamber and yarn distributor, selected for set and/or shrunk yarn up to 300f shrinking
  • Waxing by deflection
  • Tensioner device for deflection with cleaning air jet
  •   Technical details
  • Number of winding heads: 25-30-35-40-45. With automatic doffing
  • Uses: bulking of acrylic yarn, HB and blends also with elastomers, wool, and blend-set yarn. Heat-setting
  • Thermic treatment and winding process in one single machine
  • Visual interface on the PC screen for almost tailoring the final package
  • Precise and controlled yarn layering
  • Perfect package edges geometry with optimisation of the density
  • Winding speed up to 1.000 mt/min according to the required thermic treatment
  • Absence of any yarn falls on package flanks
