RTS - Automated bobbin transportation system from speed frame to ring frame


Roving Transportation System

Roving Transportation System

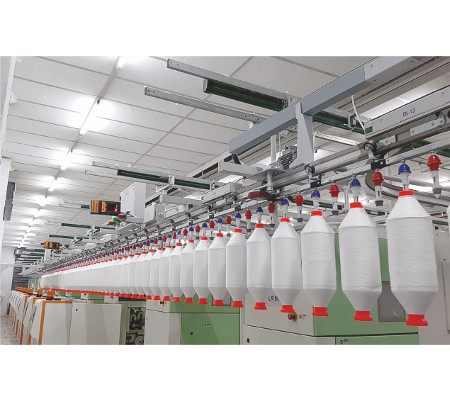

State of the art fully automatic bobbin transportation from speed frame to ring frame with bobbin stripping system, to suit individual layout and count patterns. The heart of the RTS system is a sturdy aluminium rail. The guide rollers are with angular inclination, which guides and bears the load. The rail is tapered to avoid accumulation of dust and fluff and enhances self cleaning.
Manufactured by: Sieger Spintech Equipments, India

  • Fully automatic, semi auto, manual system and creel change configuration is available
  • Fully contained unit with automatic bobbin removal, stripping, opening and reinsertion in the line
  • Variable unwinding speed to suit various materials
  • RTS - switches and diverters - automatic (or) manual switches with 2/3 way systems
  • Switches are mounted on sturdy and precisely machined aluminium plate
  • Can be installed in the existing layout (both building and machinery)
  • Interface any speed frame and ring frame
  • Contactless bobbin transport
  • Automatic roving stripping system
  • Fully integrated roving transportation system
