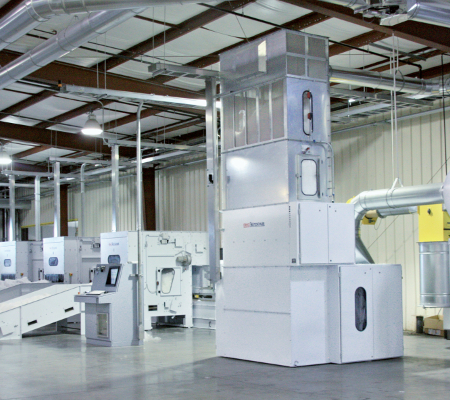

Trützschler Tuftfeeder EDSWL delivers homogeneously prepared fibre matt which can be permanently monitored and adjusted by a downstream belt weigher EBW.
Trützschler Tuftfeeder EDSWL works on the proven double trunk principle. The air comb in the top chute prepares a uniformly dense fibre column that is fed to the opening roller by means of an integrated feed plate and feed roller arrangement. This ensures uniform, precise, and controlled feeding. The opened fibre tufts are accelerated to the bottom chute by bringing in adjustable compensating air. The air combs inside the bottom chute ensures a uniform dense fibre column. The speed of the fan is controlled by means of a pressure switch.
Manufactured by: Trützschler Nonwovens and Man-made Fibres GmbH, Germany
GET A QUOTE
- Application range: for all types of fibres – natural and man-made Key Features
- Web profiling plates are factory set and it is possible to re-adjust in case of need, mechanically
- Servo motors for automatic web profiling (optional)
- Double trunk principle
- Operator and maintenance friendly
- Uniform batt weight
- Excellent end products
