HF S Series Spindles – HF S 682

High speed, silent spindle

The lowest energy consumption, the highest speed, and minimum vibration and noise – these are on the wishlist of every spinning mill, so that they can produce yarn with maximum economy and quality.
These features have been built into the design of TeraSpin’s new HF S series of spindles: a new spindle bearing unit precision-engineered to save energy and reduce vibration and noise, while operating at very high speeds. A single elastic or double elastic bolster construction combined with robust radial bearings also allows these spindles to handle high radial loads.

Benefits

Energy efficient

Very low noise

Very high spindle speed

Very low vibration

Features

Maximum mechanical speed up to 30,000 RPM

Minimum wharve dia.:
- 18 mm for ES (Energy Saving) spindles
- 18.5 mm for other spindles

Sphero point foot-step design

Two radial bearings for high radial loads

Dual damping system

Double elastic bolster construction with grease between the two housings for additional damping

Can be used for various makes and models of ring spinning frames

Supplied with multiple options:
- External hook or internal locking (SL) system
- Smart Yarn Catcher (SYC) or knurling and cutter
- Spring-loaded or centrifugal button

Resources

Get all the information you need - Brochures and Product Support

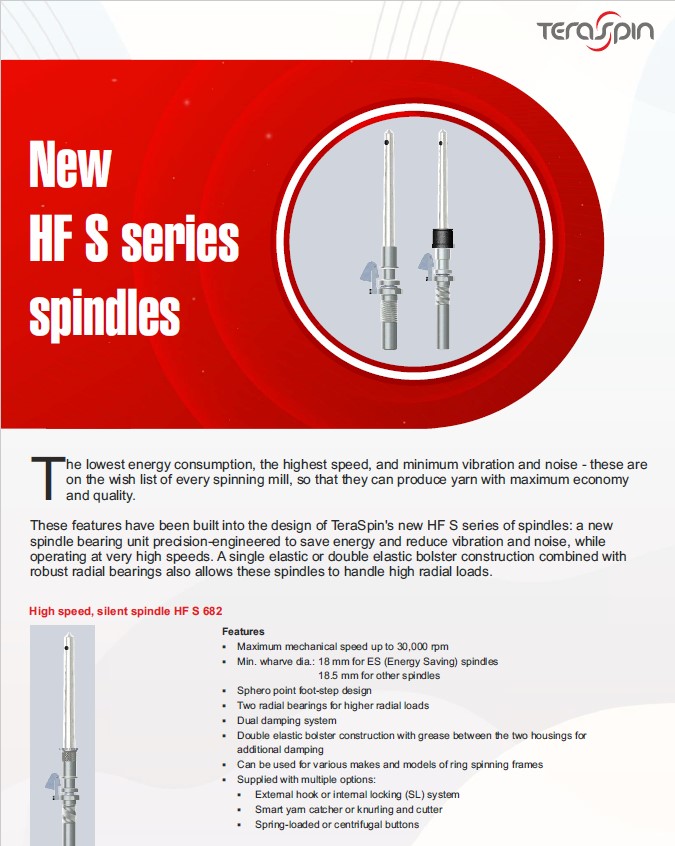

New HF S Series Spindles
