ViewAXIS Mega 2.0

ViewAXIS Mega 2.0

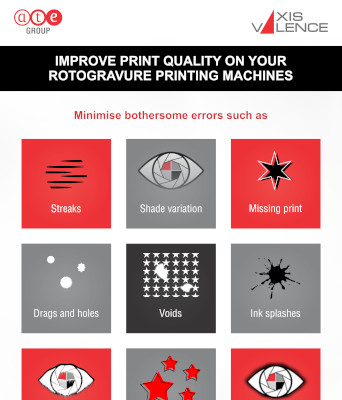

ViewAXIS Mega 2.0 is a computerised web viewing system with high resolution digital cameras. It uses state-of-the-art technology that captures high resolution images. A motorised traverse and touch-screen controlled operation allows operators to closely scrutinise the printing web. Smooth travel along the traverse and magnification in the region of interest add flexibility and make it easy to inspect a fast moving print web. Icon-based graphical user Interface (GUI) makes it easy for the operator to take further actions. The ViewAXIS Mega 2.0 uses a low power consumption LED strobe that can flash with variable intensity. Features such as image rotation, horizontal and vertical flip aid in better web viewing. Iris control for dynamic exposures allow for capturing sharp, well-focused images. All this makes the ViewAXIS Mega 2.0 well-suited for any type of roll-to-roll application for any packaging substrate. With the ViewAXIS Mega 2.0, operators can quickly locate issues such as registration, perforation, voids, streaks, missing print, and colour variations quickly and take appropriate corrective action.
Manufactured by: A.T.E. Enterprises Private Limited, India


The printing industry has become very competitive with ever escalating demands for improved print quality, higher efficiency, reduced wastage, and lower use of expensive raw material. However, at higher web speeds it becomes impossible to examine the print web by an unaided human eye. A video-based web monitoring system – such as ViewAXIS Mega 2.0 – is therefore necessary to locate print defects on a printing machine. A video based web monitoring system allows operators to view a stationary image even though the web is actually moving at a high speed, and zoom in to inspect the print quality.

      Technical Details
  • No. of memory positions: 4
  • Monitor: 22" full HD, LED-backlit, touch screen
  • Camera resolution: 1920 x 1200 pixels
  • Viewing area: 128 mm (w) × 80 mm (h)
  • Camera unit: Matrix CMOS
  • Flash unit: LED strobe
  • Area magnification: 4x digital zoom
  • Print speed: maximum 1000 m/min
  • Power supply: 230 V AC, 50 Hz
  • Dots per inch (DPI): 381
  •   Key Features
  • LED strobe with variable intensity
  • Sharp and high resolution image
  • Digital zoom
  • Iris adjustment dynamic exposure and time functionality
  • Unlimited job memory
  • Single monitor for image and controls/adjustment
  • Motorised traverse
  • Image rotation, vertical and horizontal flip
  • Live storage and recall
  • 4 'X' and 'Y' directions memory positions for easy and quick access
  • Icon based GUI
  • Customised solution offered multi camera and multi monitor systems. Speak to us for any other customised requirements
  • X-ray vision helps monitor images, layer by layer
  • Reduced material wastage
  • Reduced set up time
  • Low power consumption flash
  • Improved productivity
  • Improved customer satisfaction due to consistent print quality
