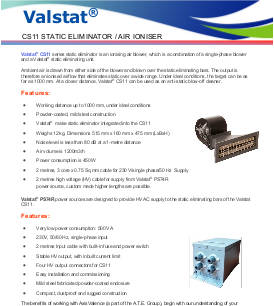

Valstat® Blower Based Static Eliminator

Valstat® Blower Based Static Eliminator

(Neutralising static with an ionising blower)

The Valstat® CS 11 static eliminator is an ionising blower used to blow ionisied air on any 3D/2D object on which static is to be neutralised. It consists of a single phase motor with a double inlet impeller and Valstat® static eliminating units. Ambient air is drawn from either side of the blower and blown over the static eliminating bars, provided at the outlet. This results in an ionised air flow that effectively eliminates static over a wide range. Under ideal conditions, the target can be as far as 1000 mm. At closer distances, the Valstat® CS 11 can be used as an anti-static blow off cleaner. Valstat® PS 70 R power sources are designed to provide high voltage AC supply to Valstat® CS 11 static eliminators. They give stable high voltage output even under severe conditions.
Manufactured by: A.T.E. Enterprises Private Limited, India

      Key Features
  • Powder coated, mild steel construction
  • Weight 12 kg; dimensions (in mm): 510 L × 160 W × 450 H
  • Noise level less than 80 dBA at 1 m distance
  • Air volume of 620 cubic metre per hour
  • Power consumption 100 W
  • 230 V, 50/60 Hz, single phase input to blower through 5 m PVC cable
  • From external Valstat® PS 70 S power source through 3 m HV cable
  • Three HV output connectors for VS 20 bars
  • Stable HV output, with in-built current limit
  • Valstat static eliminator built into the system
  • 2 m input cable with built-in fuse and power switch
  • Easy installation and commissioning
  • Easy installation, commissioning
  • Extended working distance of up to 1000 mm
  • Shock-less
  • Can eliminate static from 2D and 3D objects
  • Compact, rugged, dust-proof, powder coated construction, fabricated of mild steel
  • Very low power consumption - 50 W
  • Provides stable high voltage output even under severe operating conditions
